Impact Resistance Partition (Impactstop)

Introduction

This partition system is designed for areas that are potentially subject to impact.

Suitable to be applied at:

  • Corridor Wall
  • Dividing wall between rooms in the apartment
  • Lobby
  • Library
  • School and other areas.
  • Impact prone areas



Supporting Material:

  • Frame: JayaBMS Wall Track, JayaBMS C Stud, JayaBMS Deflection Head Track.
  • Lining: 1 layer of USG Boral Impactstop 19mm (dua sisi).
  • Jointing: JayaCompound sebagai rekomendasi Jayaboard

Gunakan Fitur Hitung Material untuk membantu penyusunan RAB.

Specification:

  • Weight: ±32 Kg/m2
  • Grade: Severe Duty



Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m).  Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

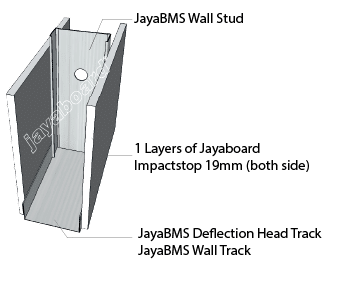

Impactstop (SS-29)
