Stud & Track Standard

Consistent Quality

JayaBMS produce each frames with high quality material and premium rust resistance coating.

Combine with specially designed shape profile to reach mechanical performance that meets international standard.

Easy and Fast Installation

Every JayaBMS ceiling and partition frame solutions

has specially designed and developed to meets faster and easier installation requirements.

Stronger and Safety

JayaBMS puts Safety Factor as a priority in developing its products. Continous calibration conducted to make sure  every product's safety level and qualities meets international standard.

Guarantee

Available Product Guarantee for every installation that follows full systems recommendation by Jayaboard.

Physical Properties:
Thickness:
  • 0.4mm
  • 0.5mm
  • 0.7mm
Profile (Length x Flange):

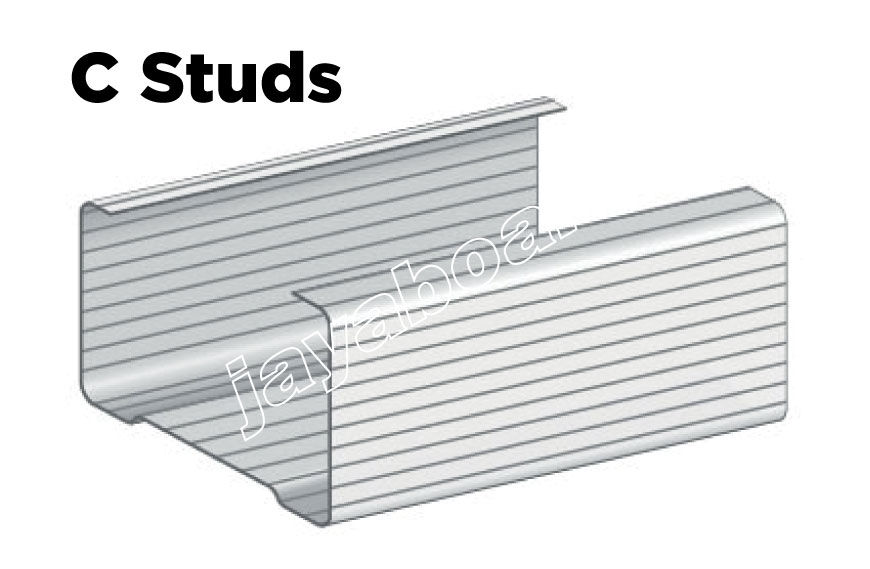

  • 45-150mm x 36.7mm x 33.5mm (JayaStud)

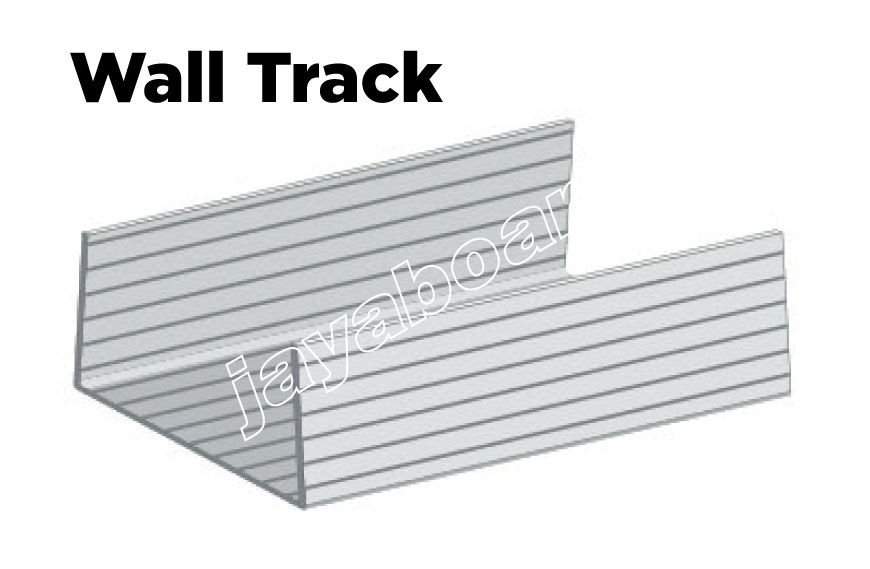

  • 45-150mm x 32mm x 32mm (JayaTrack)

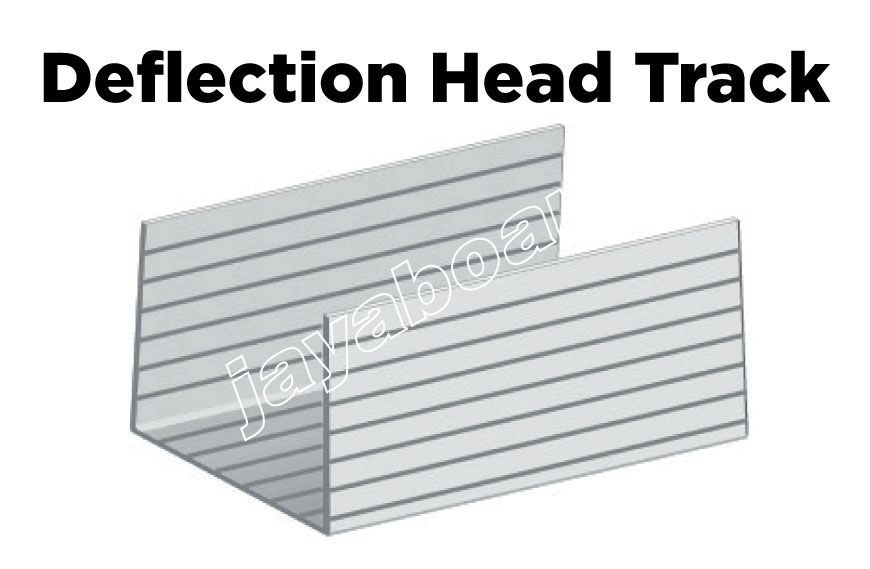

  • 45-150mm x 50mm x 50mm  (JayaDeflection-Head Track)
Recommended Installations:
  • Fire Resistance (Frame Thickness min. 0.5mm BMT)
  • Apartment
  • Hotel
  • Office
  • Factory
Features & Benefits:
  • Easy & Fast Installation
  • Fire Resistane
  • Rust Resistance Coating
  • Lightweight
  • Clean & Neat Construction Area
  • Fast & Precision Installation
  • Produced with SNI metal coil based
Katalog Brosur | Brochures Catalogues
    1. Jayaboard, English
    2. Drywall Plaster in Indonesia | Jayaboard Products
    3. Metal Frame JayaBMS
    4. Partition Frame
    5. Stud & Track Standard

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
