Fire Rating 3 Hours


This partition system developed to meet the requirements of Fire Resistant up to 3 hours (FRL -180/180).

Suitable to be applied at:

  • Hotel partition
  • Factory
  • Warehouse
  • Any other area that require Fire Rating Performance up to 3 hours.

Supporting Material:

  • Frame: JayaBMS Wall Track, JayaBMS C Stud, JayaBMS Deflection Head Track, JayaBMS Direct fixed clip + JayaBMS Furring Channel (Thickness min. 0,5mm BMT)
  • Lining: 2 layer of Firestop 16mm (2 sides) + 1 layer of  Jayabell 12mm (1 side)
  • Jointing: JayaCompound as Jayaboard recommendation.

Use Hitung Material fiture to help you figure total materials needed.


  • Fire Rating: Up to FRL -/180/180
  • Acoustic Rating: STC 57 (no insulation), STC 63 (insulation 60kg/m3)
  • Weight: 80 Kg/m2
  • Grade (BS 5234): Severe Duty


  • All the materials above calculated based on a room with a size of (3 x 33.33m).  Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

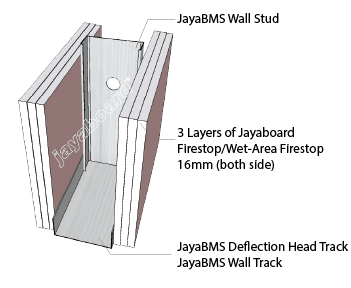

Fire Rating 3 Hour (SS-22)

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
