SSWA1 Moisture Resistance - Optimum

Moisture Resistance Partition - Optimum

Introduction

This partition system developed to meet the requirements of Moisture Resistance.

Specifications :

  • Fire Rating: FRL 0/30/30
  • Acoustic Rating: STC 34 (no insulation), STC 44 (insulation 60kg/m3)
  • Weight: 17 Kg/m2
  • Grade (BS 5234): Medium Duty​



Supporting Materials:

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud.​

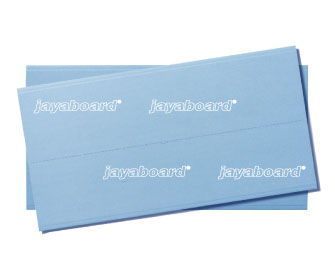

  • Lining: 1 layer of Wet Area Optimum 13mm (2 sides)
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.





Suitable for :

  • Bathroom
  • Toilet
  • Any other area that require Moisture Resistance performance.



Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m). Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
