SSS11 Acoustic - Standard

Introduction

This partition system developed to meet the requirements of Soundproof.

Suitable to applied at:

  • Hotel Corridor
  • Apartment partition wall
  • Library
  • Music Studio
  • Any other area that require soundproof

Supporting Material:

  • Frame: JayaBMS Wall Track, JayaBMS C Stud (Thickness min. 0,5mm BMT), JayaBMS Deflection Head Track
  • Lining: 2 layer  of Soundstop 12mm (2 sides)
  • Jointing: JayaCompound as Jayaboard recommendation.

Use Hitung Material fiture to help you figure total materials needed.

Specification:

  • Fire Rating: (FRL -/60/60).
  • Acoustic Rating: STC 50 (no insulation), STC 63 (insulation 60kg/m3)
  • Weight: 47 Kg/m2
  • Grade (BS 5234): Medium Duty

Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m).  Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

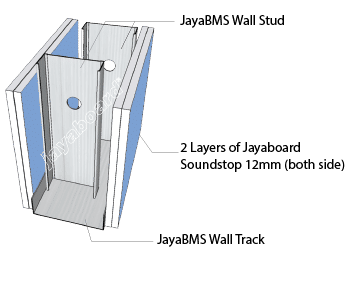

Staggered Acoustic - Standard (SSS-11)
