CWS3SS Twin Stud - Standard

CWS3SS Twin Stud - Standard


This partition system developed to meet the requirements of Soundproof.

Specifications :

  • Fire Rating: FRL 0/30/30
  • Acoustic Rating: STC 45 (no insulation), STC 58 (insulation 60kg/m3)
  • Weight: 19 Kg/m2
  • Grade (B5234): Heavy Duty​

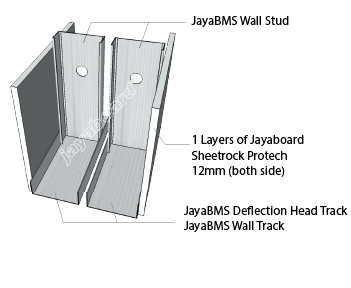

Supporting Materials:

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud.​
  • Lining: 1 layer of Soundstop 12mm (2 sides)
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.



Suitable for :

  • Apartment partition wall
  • Music Studio
  • Library
  • Any other area that require soundproof



  • All the materials above calculated based on a room with a size of (3 x 33.33m). Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
