CS23 Heat Resistance Ceiling (Easy Frame)

CS23 Heat Resistance Ceiling (Easy Frame)


This ceiling system specially designed to help maintaning room temperature by resisting heat (up to 90%) with special metalized film that cover 1 side of Jayaboard Sheetrock. (JIS R3 106).

Suitable to be applied at:

  • Residential
  • Hotel, Apartment, Commercial Building.

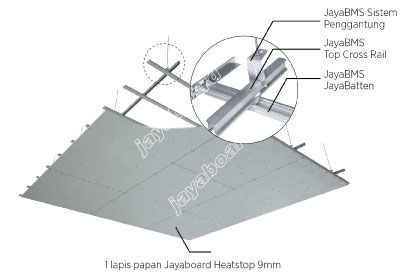

Supporting Material:

  • Frame: JayaBMS Hanger System (Bracket PN 220/221, Clip Adjuster PN 222, Rod PN 227 M4), JayaBMS Top Cross Rail PN 250, JayaBMS Batten PN-251, Wall Angle PN-252.
  • Board: 1 Layer of Jayaboard Heatstop 9mm
  • Jointing: JayaCompound as Jayaboard Recommendation.

Use Hitung Material fiture to help you figure total materials needed.



  • All the materials above calculated based on a room with a size of (10x10m). Another room sizes should be considered further.
  • Suspension gap max. of 1000mm
  • Primary frames gap max. of 1000mm
  • Secondary frames gap max. of 600mm
  • All the materials above needs to be reconfirmed by the Contractor / Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
